Introduction
For breaking and closing,change-over of circuits underunfrequently manual operation.And the typical application are:control switch of 3phase motors,control switch of switch gear,control switch of instruments,andchange-over switch of machinery and welding machine.
The series comply with the GB 14048.3,GB 14048.5 and IEC 60947-3,IEC 60947-5-1.
The LW26 series have 8 current ratings
10A,20A,25A,32A,40A,63A,125A,160A250A,and 315A.They were designed for multiple functions,wide variety of applications.
The LW26-10,LW26-20,LW26-25,LW26-32F,LW26-40F and LW26-63F have fngerprotection terminals,
LW26 series rotary switch are an excellent substitute for LW2,LW5,LW6,LW8,LW12,LW15,HZ5,HZ10 and HZ12.
The LW26 series rotary switch has two derivatives,LW26GS Pad-lock type and LW26SKey-lock type.
Both of them are applicable in circuits when an physical control is required.
We can equip protective box(IP65)for 20A to 250A.
Working conditions
- Ambient temperature DO NOTexceed 40℃,and the average temperature,measuredover a period of 24 hours,DO NOTexceed 35℃.
- Ambien temperature should not be below -25℃
- Should not be installed above 2000m above sea level.
- The humidity should not exceed 50%when the ambient temperaure is 40℃ and higherhumidity is allowed for lower temperature
Installation conditions
- A clean environment is required
- Please follow our manual

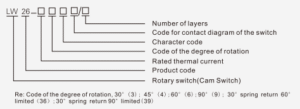

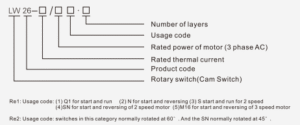

Type and meaning of products
Use as control switches for a main circuit
| 1.By Utilization | 2.By operation | 3.By contact system |
| (1)Change-over switch (2)Motor switch (3)Control switch | (1)Limited movement (2)Spring return (3)Limited movementwith spring return | (1)Switches with limited movement could have 12 layersin max(for 32A and below),and for 63A and above could have 8layers in max. (2)Switches with spring return could have 3 layers in max. (3)Motor switches could have 6 layers in max. |
Classfication
| Specification | LW26-10 LW26-10G LW26-10X | LW26-20 LW26-20X LW26-20C | LW26-25 | LW26-32 LW26-32F | LW26-40 LW26-40F | LW26-63 LW26-63F | LW26-125 | LW26-160 | LW26-250 | LW26-315 | |||||||||||||||||||||
| Rated insulation voltage | Ui | V | 660/690 | 660/690 | 660/690 | 660/690 | 660/690 | 660/690 | 660/690 | 660/690 | 660/690 | 660/690 | |||||||||||||||||||
| Rated thermal current | A | It h | 10 | 20 | 25 | 32 | 40 | 63 | 125 | 160 | 250 | 315 | |||||||||||||||||||
| Rated working voltage | Ue | V | 240 | 440 | 24 | 110 | 240 | 440 | 24 | 110 | 240 | 440 | 240 | 440 | 440 | 440 | 440 | 240 | 440 | ||||||||||||
| Rated working current | le | ||||||||||||||||||||||||||||||
| AC-21A AC-22A | A | 10 | 10 | 20 | 20 | 25 | 25 | 32 | 32 | 63 | 63 | 100 100 | 150 150 | 315 315 | |||||||||||||||||
| AC-23A | A | 7.5 | 7.5 | 15 | 15 | 22 | 22 | 30 | 30 | 37 | 37 | 57 | 57 | 90 90 | 35 135 | 200 200 | 265 265 | ||||||||||||||
| AC-2 | A | 7.5 | 7.5 | 15 | 15 | 22 | 22 | 30 | 30 | 57 | 57 | 90 90 | 135 135 | 265 265 | |||||||||||||||||
| AC-3 | A | 5.5 | 5.5 | 11 | 11 | 15 | 15 | 22 | 22 | 30 | 30 | 36 | 36 | 75 75 | 95 95 | 110 110 | 110 110 | ||||||||||||||
| AC-4 | A | 1,75 | 1.75 | 3.5 | 3.5 | 6.5 | 6.5 | 11 | 11 | 15 | 15 | 30 30 | 55 55 | 95 95 | |||||||||||||||||
| AC-15 | A | 2.5 | 1.5 | 5 | 4 | 8 | 5 | 14 | 6 | ||||||||||||||||||||||
| DC-13 | A | 12 0.4 20 0.5 0.5 | |||||||||||||||||||||||||||||
| Power | p | ||||||||||||||||||||||||||||||
| AC-23A | KW | 1.8 3 | 3.7/2.5 | 7.5/3.7 | 5.5/3 | 11/5.5 | 7.5/415/7.5 | 18.5/9 | 18.5/9 | 15/1030/18.5 | 30/1545/22 | 37/2275/37 | 75/37132/55 | ||||||||||||||||||
| AC-2 KW | KW | 2.5 3.7 | 4 | 7.5 | 5.5 | 11 | 7.5 15 | 18.5 30 | 30 45 | 37 55 | 55 95 | ||||||||||||||||||||
| AC-3 KW | KW | 1.5 2.2 | 3/2.2 | 5.5/3 | 4/3 | 7.5/3.7 | 5.5/411/5.5 | 15/7.5 | 15/7.5 | 11/618.5/11 | 15/7.530/13 | 22/1137/18.5 | 37/2255/30 | ||||||||||||||||||
| AC-4 KW | KW | 0.37 0.55 | 0.55/0.75 | 1.5/1.5 | 1.5/1.1 | 3/2.2 | 2.7/1.55.5/3 | 5.5/2.47.5/4 | 6/312/5.5 | 10/415/7.5 | 15/7.525/11 | ||||||||||||||||||||
| Re1:Neutral | |||||||||||||||||||||||||||||||
| Re2:The power under:AC-23A,AC-3,AC-4 are in three phase three poles,and the denominator represents the power under single phase two poles. | |||||||||||||||||||||||||||||||
